M3 UL20 - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal
M3

UL20

See variants (20)
Category
Barcode terminal UL20

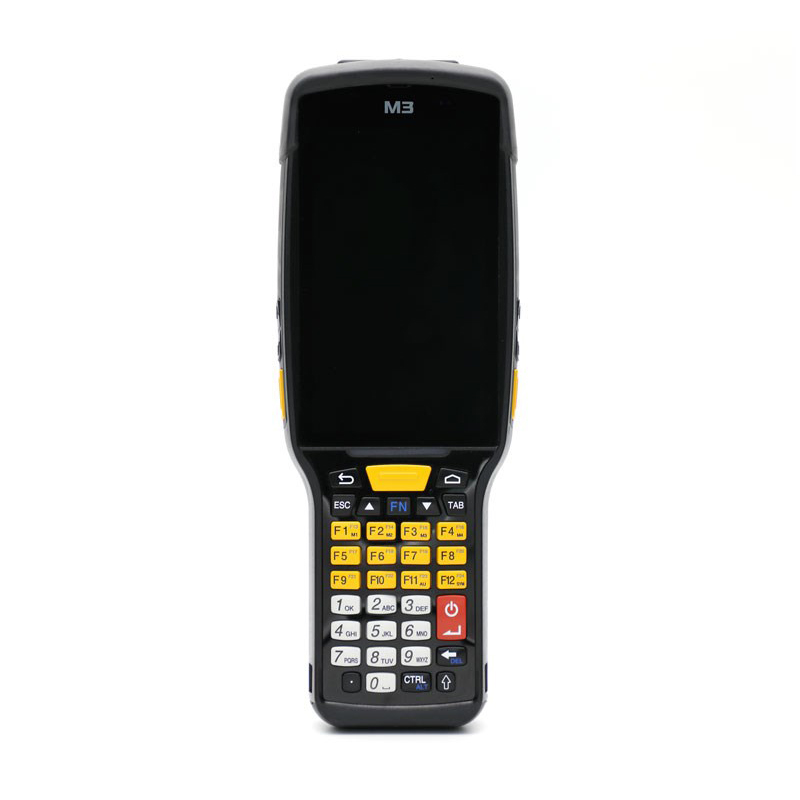

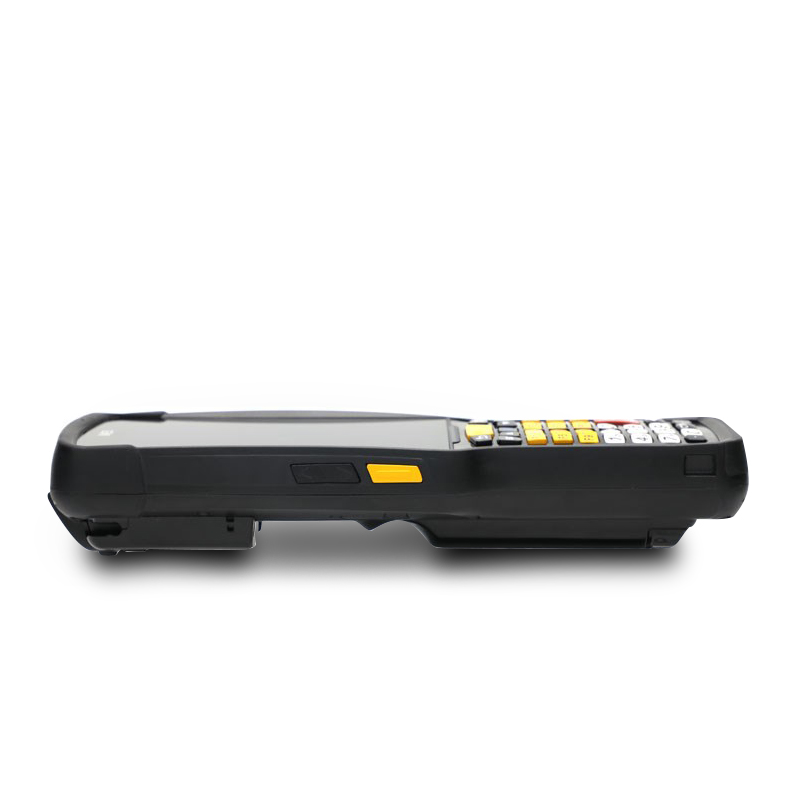

The UL20 series of devices from M3 Mobile are rugged mobile terminals that can be used in harsh environments. They are suitable for work in harsh conditions. They are designed primarily for logistics and warehouse work warehouse work. They are equipped with scanners that read both one-dimensional and two-dimensional codes (1D and 2D). It is also possible to configure the Long Range, thanks to which the devices can also read codes The devices can also read codes from a longer distance. They have 5-inch Full HD displays, Android system and IP67 protection. IP67 rating.

UL20W is a terminal with 2GB RAM and 16GB ROM. UL20F and UL20X are devices with 4GB RAM and 32 ROM. In addition, UL20F terminal has been equipped with GPS, while UL20X, in addition to GPS, can boasts WWAN function.
Back to product list

Available variants, options

Select a specific device variant to see its configuration and details.

  • M3 U20X4C-PLCFSS-HF-R - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    U20X4C-PLCFSS-HF-R

    portable data collection device, 2D, imager (long range, SE4850), keypad (35 keys, Functional Numeric), GPS, Cam (16MP), 12.7 cm (5''), Bluetooth, Wi-Fi (802.11ac), 4G (LTE), NFC, resolution: 1920x1080 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (9.0), incl.: software, Google Mobile Services, battery, 6700 mAh
  • M3 U20X4C-P2CFSS-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    U20X4C-P2CFSS-HF

    portable data collection device, 2D, imager (SE4750), keypad (35 keys, Functional Numeric), GPS, Cam (16MP), 12.7 cm (5''), Bluetooth, Wi-Fi (802.11ac), 4G (LTE), NFC, resolution: 1920x1080 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (9.0), incl.: software, Google Mobile Services, battery, 6700 mAh
  • M3 U20X4C-P2CFRS-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    U20X4C-P2CFRS-HF

    portable data collection device, 2D, imager (SE4750), keypad (28 keys, numeric), GPS, Cam (16MP), 12.7 cm (5''), Bluetooth, Wi-Fi (802.11ac), 4G (LTE), NFC, resolution: 1920x1080 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (9.0), incl.: software, Google Mobile Services, battery, 6700 mAh
  • M3 U20X4C-P2CFSS-HF-R - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    U20X4C-P2CFSS-HF-R

    portable data collection device, 2D, imager (SE4750), keypad (35 keys, Functional Numeric), GPS, Cam (16MP), 12.7 cm (5''), Bluetooth, Wi-Fi (802.11ac), 4G (LTE), NFC, resolution: 1920x1080 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (9.0), incl.: software, Google Mobile Services, battery, 6700 mAh
  • M3 U20X4C-QLCFRS-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    U20X4C-QLCFRS-HF

    portable data collection device, 2D, imager (long range, SE4850), keypad (28 keys, numeric), GPS, Cam (16MP), 12.7 cm (5''), Bluetooth, Wi-Fi (802.11ac), 4G (LTE), NFC, resolution: 1920x1080 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (10), incl.: software, Google Mobile Services, battery, 6700 mAh
  • M3 U20X4C-P2CFRS-HF-R - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    U20X4C-P2CFRS-HF-R

    portable data collection device, 2D, imager (SE4750), keypad (28 keys, numeric), GPS, Cam (16MP), 12.7 cm (5''), Bluetooth, Wi-Fi (802.11ac), 4G (LTE), NFC, resolution: 1920x1080 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (9.0), incl.: software, Google Mobile Services, battery, 6700 mAh
  • M3 U20X4C-PLCFES-HF-R - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    U20X4C-PLCFES-HF-R

    portable data collection device, 2D, imager (long range, SE4850), keypad (53 keys, alphanumeric), GPS, Cam (16MP), 12.7 cm (5''), Bluetooth, Wi-Fi (802.11ac), 4G (LTE), NFC, resolution: 1920x1080 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (9.0), incl.: software, Google Mobile Services, battery, 6700 mAh
  • M3 U20X4C-PLCFRS-HF-R - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    U20X4C-PLCFRS-HF-R

    portable data collection device, 2D, imager (long range, SE4850), keypad (28 keys, numeric), GPS, Cam (16MP), 12.7 cm (5''), Bluetooth, Wi-Fi (802.11ac), 4G (LTE), NFC, resolution: 1920x1080 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (9.0), incl.: software, Google Mobile Services, battery, 6700 mAh
  • M3 U20W0C-PLCFSS-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    U20W0C-PLCFSS-HF

    portable data collection device, 2D, imager (long range, SE4850), keypad (35 keys, Functional Numeric), GPS, Cam (13MP), 12.7 cm (5''), Bluetooth, Wi-Fi (802.11ac), NFC, resolution: 1920x1080 pixels, Qualcomm Octa Core, 2.0 GHz, RAM: 2 GB, Flash: 16GB, Android (9.0), incl.: software, Google Mobile Services, battery, 6700 mAh
  • M3 U20W0C-PLCFRS-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    U20W0C-PLCFRS-HF

    portable data collection device, 2D, imager (long range, SE4850), keypad (28 keys, numeric), GPS, Cam (13MP), 12.7 cm (5''), Bluetooth, Wi-Fi (802.11ac), NFC, resolution: 1920x1080 pixels, Qualcomm Octa Core, 2.0 GHz, RAM: 2 GB, Flash: 16GB, Android (9.0), incl.: software, Google Mobile Services, battery, 6700 mAh
  • M3 U20W0C-P2CFES-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    U20W0C-P2CFES-HF

    portable data collection device, 2D, imager (SE4750), keypad (53 keys, alphanumeric), GPS, Cam (13MP), 12.7 cm (5''), Bluetooth, Wi-Fi (802.11ac), NFC, resolution: 1920x1080 pixels, Qualcomm Octa Core, 2.0 GHz, RAM: 2 GB, Flash: 16GB, Android (9.0), incl.: software, Google Mobile Services, battery, 6700 mAh
  • M3 U20W0C-P2CFSS-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    U20W0C-P2CFSS-HF

    portable data collection device, 2D, imager (SE4750), keypad (35 keys, Functional Numeric), GPS, Cam (13MP), 12.7 cm (5''), Bluetooth, Wi-Fi (802.11ac), NFC, resolution: 1920x1080 pixels, Qualcomm Octa Core, 2.0 GHz, RAM: 2 GB, Flash: 16GB, Android (9.0), incl.: software, Google Mobile Services, battery, 6700 mAh
  • M3 U20W0C-P2CFRS-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    U20W0C-P2CFRS-HF

    portable data collection device, 2D, imager (SE4750), keypad (28 keys, numeric), GPS, Cam (13MP), 12.7 cm (5''), Bluetooth, Wi-Fi (802.11ac), NFC, resolution: 1920x1080 pixels, Qualcomm Octa Core, 2.0 GHz, RAM: 2 GB, Flash: 16GB, Android (9.0), incl.: software, Google Mobile Services, battery, 6700 mAh
  • M3 U20W0C-PLCFES-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    U20W0C-PLCFES-HF

    portable data collection device, 2D, imager (long range, SE4850), keypad (53 keys, alphanumeric), GPS, Cam (13MP), 12.7 cm (5''), Bluetooth, Wi-Fi (802.11ac), NFC, resolution: 1920x1080 pixels, Qualcomm Octa Core, 2.0 GHz, RAM: 2 GB, Flash: 16GB, Android (9.0), incl.: software, Google Mobile Services, battery, 6700 mAh
  • M3 U20W0C-Q2CFSS-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    U20W0C-Q2CFSS-HF

    portable data collection device, 2D, imager (SE4750), keypad (35 keys, Functional Numeric), GPS, Cam (13MP), 12.7 cm (5''), Bluetooth, Wi-Fi (802.11ac), NFC, resolution: 1920x1080 pixels, Qualcomm Octa Core, 2.0 GHz, RAM: 2 GB, Flash: 16GB, Android (10), incl.: software, Google Mobile Services, battery, 6700 mAh
  • M3 U20X4C-Q2CFSS-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    U20X4C-Q2CFSS-HF

    portable data collection device, 2D, imager (SE4750), keypad (35 keys, Functional Numeric), GPS, Cam (16MP), 12.7 cm (5''), Bluetooth, Wi-Fi (802.11ac), 4G (LTE), NFC, resolution: 1920x1080 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (10), incl.: software, Google Mobile Services, battery, 6700 mAh
  • M3 U20F0C-PLCFSS-HF-R - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    U20F0C-PLCFSS-HF-R

    portable data collection device, 2D, imager (long range, SE4850), keypad (35 keys, Functional Numeric), Cam (16MP), 12.7 cm (5''), Bluetooth, Wi-Fi (802.11ac), NFC, resolution: 1920x1080 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (9.0), IP67, incl.: software, Google Mobile Services, battery, 6700 mAh
  • M3 U20F0C-PLCFSS-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    U20F0C-PLCFSS-HF

    portable data collection device, 2D, imager (long range, SE4850), keypad (35 keys, Functional Numeric), Cam (16MP), 12.7 cm (5''), Bluetooth, Wi-Fi (802.11ac), NFC, resolution: 1920x1080 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (9.0), IP67, incl.: software, Google Mobile Services, battery, 6700 mAh
  • M3 U20F0C-P2CFES-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    U20F0C-P2CFES-HF

    portable data collection device, 2D, imager (SE4750), keypad (53 keys, alphanumeric), Cam (16MP), 12.7 cm (5''), Bluetooth, Wi-Fi (802.11ac), NFC, resolution: 1920x1080 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (9.0), IP67, incl.: software, Google Mobile Services, battery, 6700 mAh
  • M3 U20F0C-P2CFSS-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    U20F0C-P2CFSS-HF

    portable data collection device, 2D, imager (SE4750), keypad (35 keys, Functional Numeric), Cam (16MP), 12.7 cm (5''), Bluetooth, Wi-Fi (802.11ac), NFC, resolution: 1920x1080 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 32 GB, Android (9.0), IP67, incl.: software, Google Mobile Services, battery, 6700 mAh
