Parts Counting Scale - Waga xT
Our parts counting scale is more than just a measuring device. It is a professional solution designed for production and logistics companies looking to eliminate human error during inventory audits and order picking.
An innovative way to count parts with the Waga xT.
The Waga xT is not just an industrial scale; it's a comprehensive solution revolutionizing the counting of small parts in production companies. It minimizes the risk of errors, reduces the time needed to count goods to a minimum, and increases the efficiency of warehouse operations. The Waga xT is designed for integration with existing ERP systems (SAP, Oracle, MS Dynamics, CDN, etc.), allowing you to download and upload data directly to these systems. This gives you access to accurate and up-to-date warehouse stock information in real-time.
Example Counting Process – From Scan to Document.

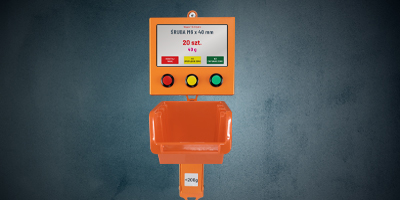

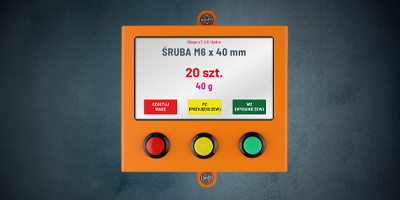

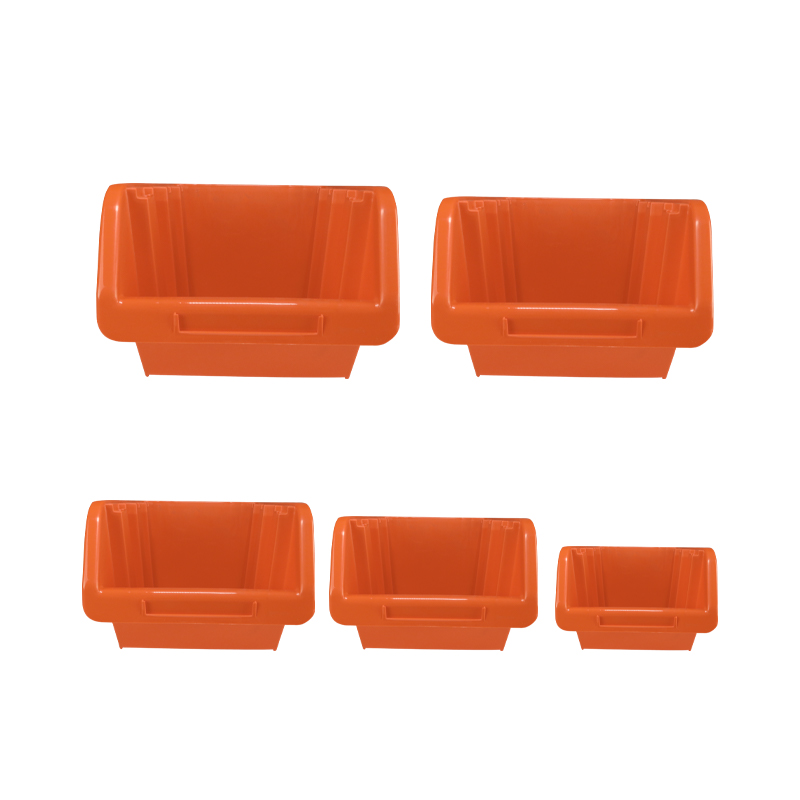

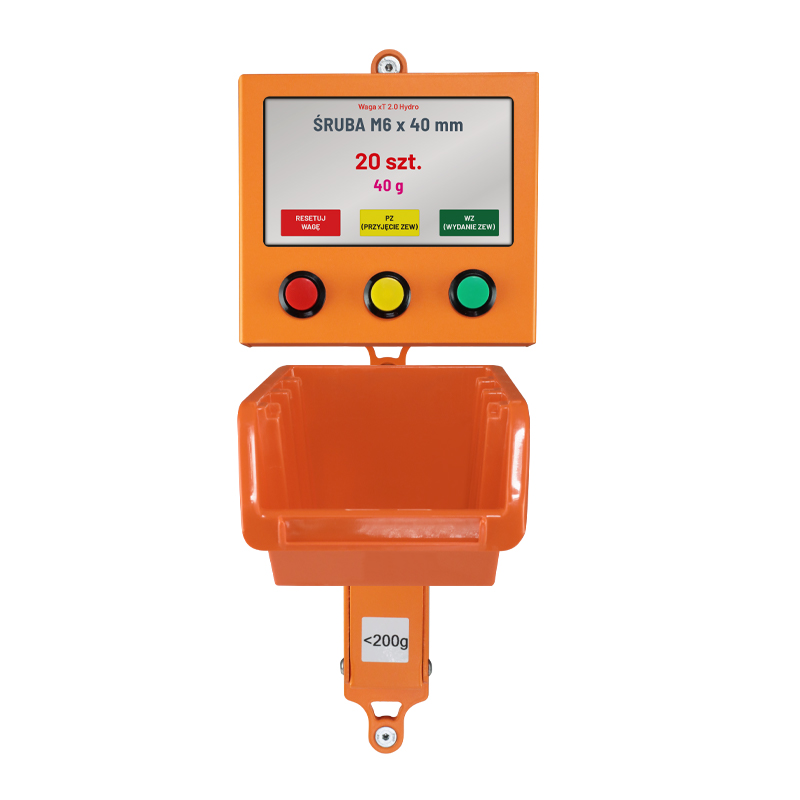

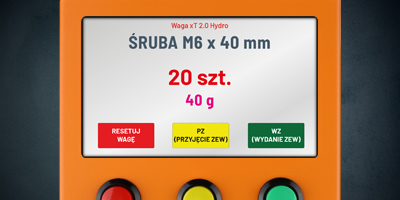

Imagine an operator needs to retrieve a specific quantity of nuts from the warehouse. Instead of counting them manually, the operator scans the barcode of the nuts using a barcode scanner. Product information and an image appear on the screen, streamlining the process. The operator places a handful of nuts into the scale container, and the system automatically counts their quantity. After the process is complete, the system generates a WZ (outgoing delivery) or PZ (incoming delivery) document and automatically transmits data to the ERP system. In the case of a PZ document, the system compares the quantity of products on the package with the actual stock and reports any discrepancies. It's truly simple, fast, and precise.Robust Construction for Durable Use.

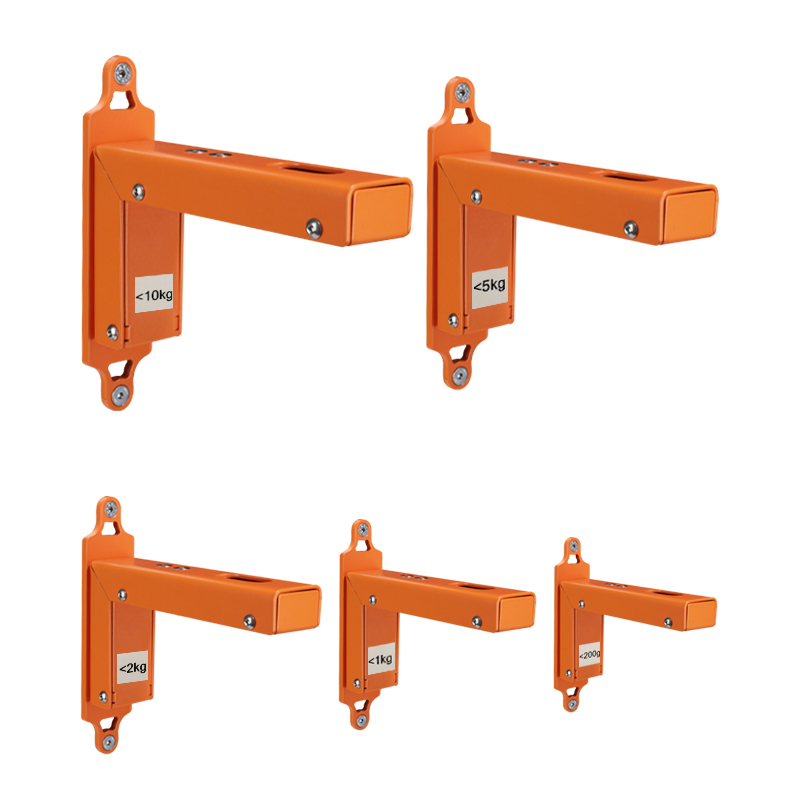

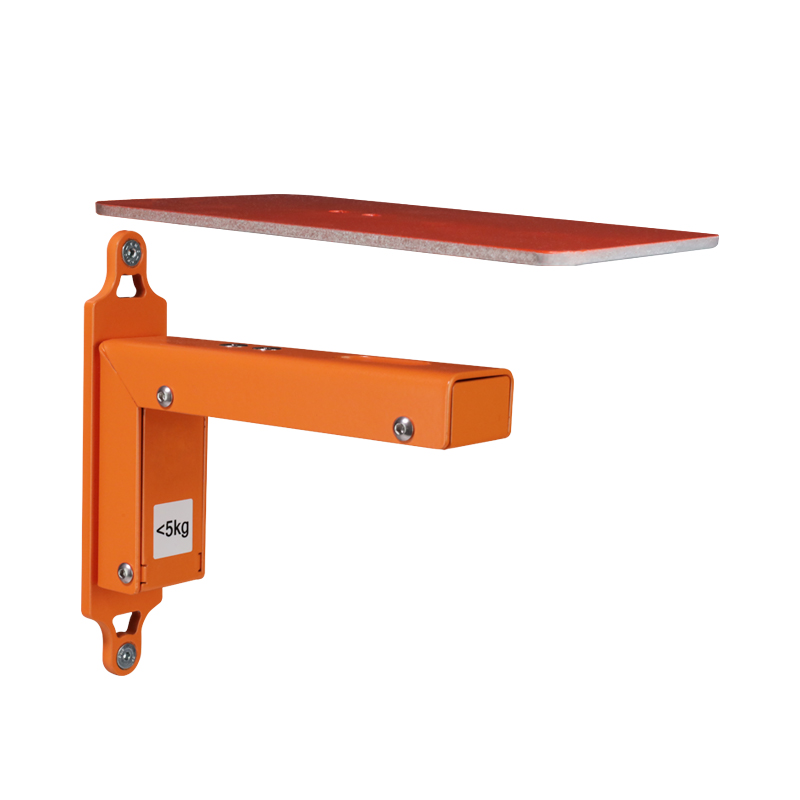

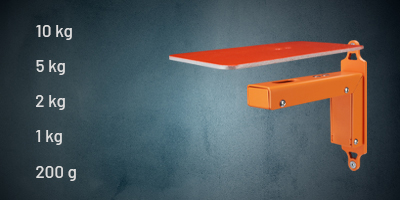

The Waga xT combines modern technology with a robust construction. Its metal housing provides resistance to mechanical damage and weather conditions, allowing for safe use in any industrial environment. The device operates within a wide temperature range (from -10°C to +50°C) and is available in five different weight measurement ranges: 1 kg, 2 kg, 5 kg, 10 kg, and 200 kg. Furthermore, its modular design allows for easy mounting on forklifts or production lines, further increasing its flexibility. Configuration of other scales, including a 200g scale, is available on request.
Features and Integration with ERP or WMS Systems.
The Waga xT offers a wide range of functionalities, including offline mode, allowing you to count goods even when not connected to the network. The device works with the Bilberry xT kiosk, which offers additional functions such as resetting the scale, generating PZ or WZ documents, and automatically ordering missing items. Additionally, the system can import data about the weight of a single item from the client’s ERP or WMS systems.Customized Solution – Tailored to Your Needs.
The solution includes ready-to-use devices, however, integration and configuration are implemented on a customized basis to meet your individual requirements. The price of the entire set depends on the selected scale, the ERP or WMS system used, the scope of technical support, the reporting method, the number of workstations, and additional accessories, such as a barcode scanner, numeric keypad, or label printer.Contact us to discuss your needs and receive an individual quote.
Technical details
Physical data | |
Weighing Range | 1 kg, 2 kg, 5 kg, 10 kg |
Readability (Increment) | 1 kg - 0,5 g; 2 kg - 1 g; 5 kg - 2 g; 10 kg - 5 g |
Dimensions | 1-10 kg - 38 mm x 167 mm x 155 mm |
Weight | 1-10 kg - 595 g |
Buttons | 3 programmable buttons |
Power Supply | USB |
Communication | USB Serial |
Calibration | External |
Mounting | |
Mounting Options | Mounting hole spacing: 150 mm (for M6 bolts) |
Operating conditions | |
Operating Temperature | 10°C to 50°C |
Storage Temperature | -20°C to 70°C |
Humidity | 5% to 85% (non-condensing) |
What’s Included in the Set? A Complete Parts Counting System
To ensure the highest precision and full automation, our solution is delivered as an integrated kit. The heart of the system is the intelligent communication between the scale and your company's systems.
Bilberry xT Intelligent Controller
The xT Scale works directly with our proprietary Bilberry xT industrial controller. It serves as the "brain" of the entire operation, providing:

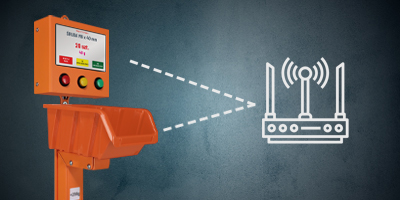

- Network Connectivity: Bilberry xT connects to your corporate network, enabling instant communication with WMS and ERP systems.
- Product Data Retrieval: Forget manual entry of piece weights. The controller automatically pulls current product data (IDs, names, unit weights) directly from the database.
- Reporting and Statistics: The system not only counts but also sends back information about performed operations, allowing for real-time tracking of warehouse performance and precise stock control.
Reliability in All Conditions - Offline Mode
We know that network stability can be a challenge in industrial settings. That’s why our solution supports offline operation.
- Even in the event of a temporary server connection loss, the operator can continue counting parts.
- Data is stored in the device's memory and automatically synchronized with the ERP/WMS system as soon as connectivity is restored. This ensures your production and shipments are never halted by technical network issues.
Get in touch
Have questions about a product or want a custom offer? Please fill out the form or contact us directly! We are ready to answer your questions and create a solution that fits your requirements.

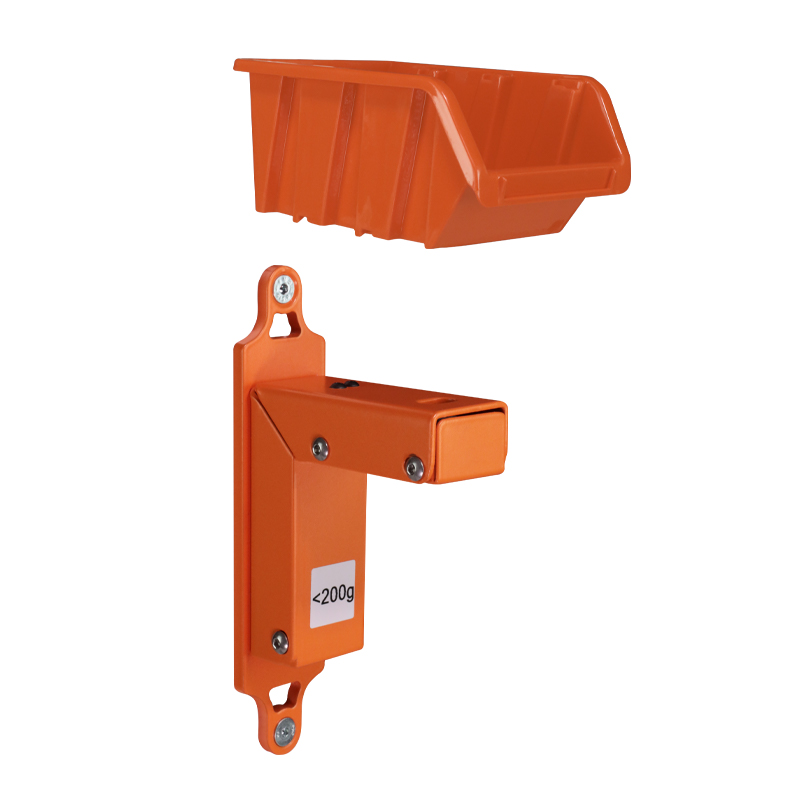

Images of piece counting scale
