M3 US20 - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal
M3

US20

See variants (22)
Category
Barcode terminal US20

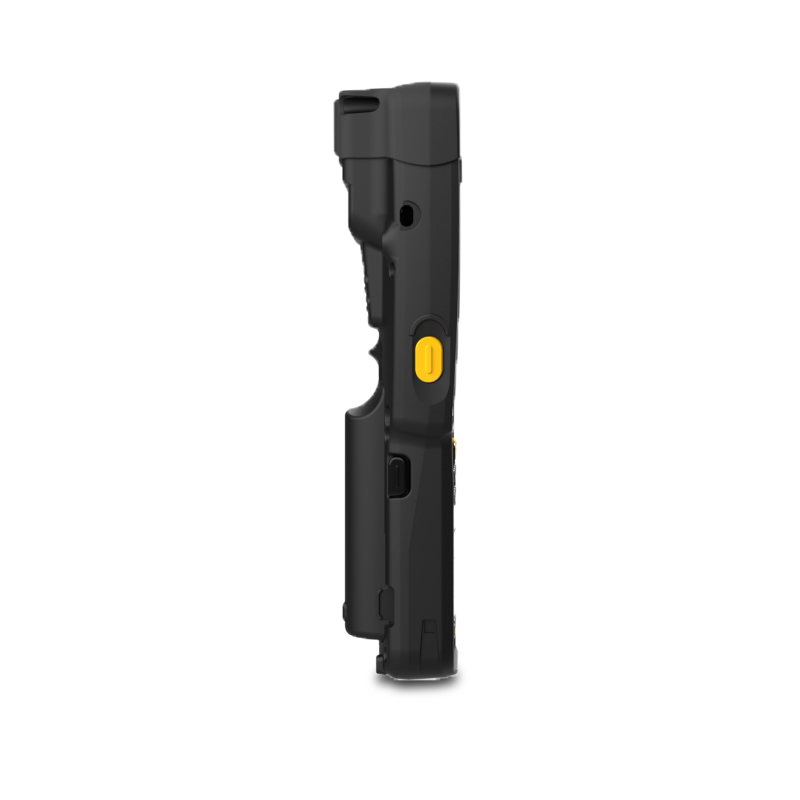

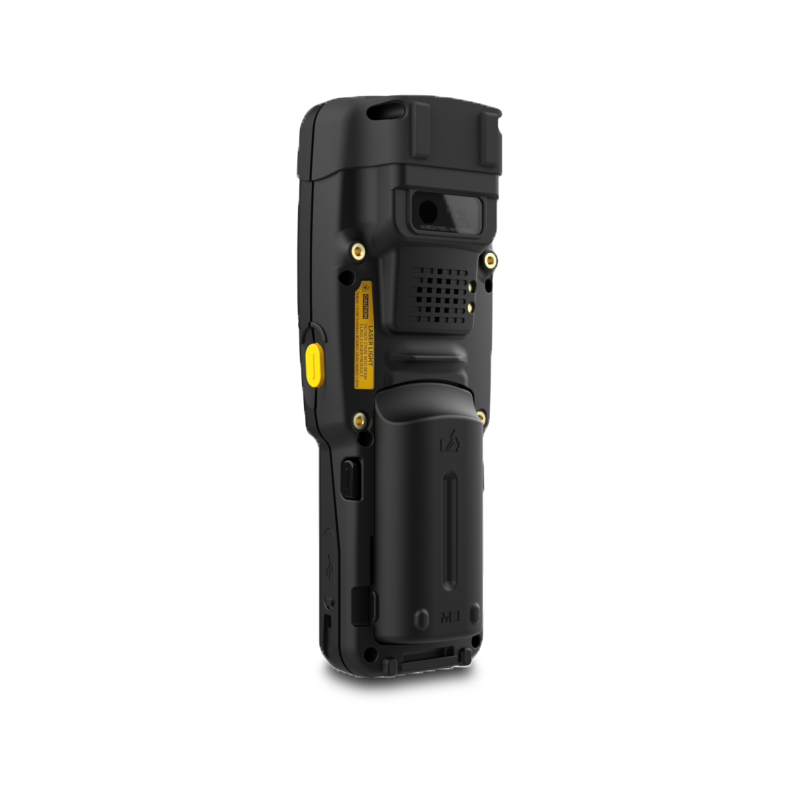

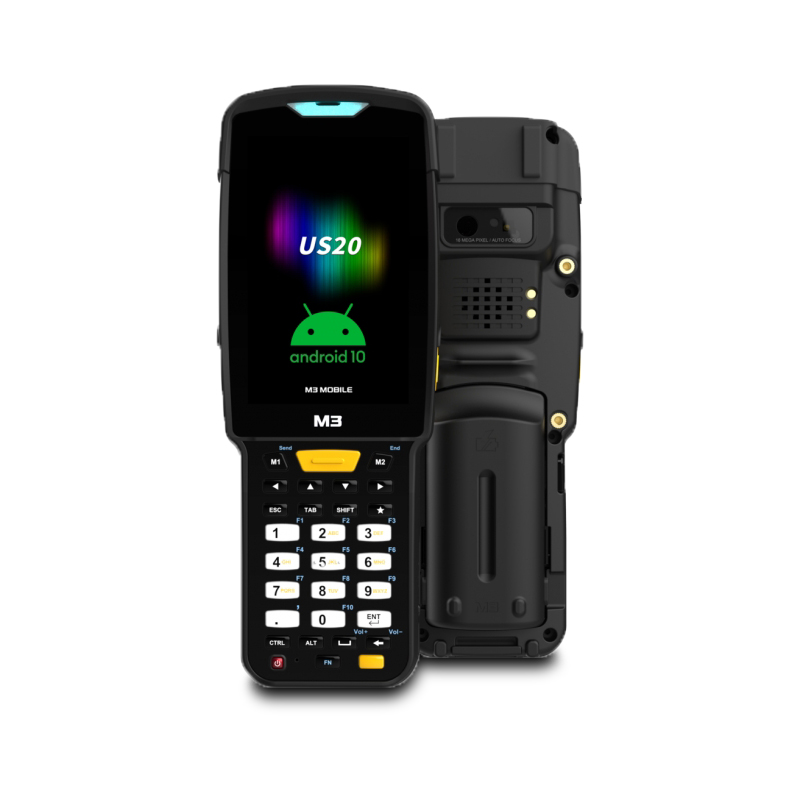

Mobile terminals from M3 Mobile US20 series are lightweight, rugged, portable devices. They are dedicated to the retail, transportation and logistics markets.

The US20 runs the Android 10 operating system, so users can increase their productivity and efficiency from the first moment of use - thanks to a familiar system. The US20 Series features an advanced processor, customizable displays and various keyboards. It offers a 16 MP rear camera 16MP rear camera and the M3 SPEEDPACK application solution, which can be used to enhance and and performance management of the device. With M3 SPEEDPACK, users can scan several barcodes via computer and device, and then thousands of devices can be customized and configured simultaneously.

The M3 Mobile terminal supports 2D codes, but will also handle situations where a long-range scanner. The high capacity 6700mAh battery, on the other hand, allows you to work for The US20 also offers hot-swap functionality. The US20 also offers hot-swap functionality, which allows you to The US20 also offers hot-swap functionality, allowing the battery to be changed seamlessly without powering down the device or shutting down the running application.

The US20W features Wi-Fi, while the US20X is equipped with 4G/LTE wireless connectivity.
Back to product list

Available variants, options

Select a specific device variant to see its configuration and details.

  • M3 S20X4C-Q9CWRE-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    S20X4C-Q9CWRE-HF

    portable data collection device, 2D, imager (45° angle, SE4770), keypad (30 keys, numeric), GPS, Cam (16MP, auto-focus), hot swappable, 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), 4G (LTE), NFC, Micro SD-Slot, resolution: 480x800 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (10), protection class: IP65, incl.: battery, 6700 mAh, hand-strap, order separately: charging cradle, power supply unit, power cable
  • M3 S20X4C-Q2CWRE-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    S20X4C-Q2CWRE-HF

    portable data collection device, 2D, imager (SE4770), keypad (30 keys, numeric), GPS, Cam (16MP, auto-focus), hot swappable, 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), 4G (LTE), NFC, Micro SD-Slot, resolution: 480x800 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (10), protection class: IP65, incl.: battery, 6700 mAh, hand-strap, order separately: charging cradle, power supply unit, power cable
  • M3 S20X4C-QLCWEE-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    S20X4C-QLCWEE-HF

    portable data collection device, 2D, imager (long range, SE4850), keypad (51 keys, alphanumeric), GPS, Cam (16MP, auto-focus), hot swappable, 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), 4G (LTE), NFC, Micro SD-Slot, resolution: 480x800 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (10), protection class: IP65, incl.: battery, 6700 mAh, hand-strap, order separately: charging cradle, power supply unit, power cable
  • M3 S20X4C-QLCWSE-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    S20X4C-QLCWSE-HF

    portable data collection device, 2D, imager (long range, SE4850), keypad (42 keys, Functional Numeric), GPS, Cam (16MP, auto-focus), hot swappable, 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), 4G (LTE), NFC, Micro SD-Slot, resolution: 480x800 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (10), protection class: IP65, incl.: battery, 6700 mAh, hand-strap, order separately: charging cradle, power supply unit, power cable
  • M3 S20X4C-Q9CWEE-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    S20X4C-Q9CWEE-HF

    portable data collection device, 2D, imager (45° angle, SE4770), keypad (51 keys, alphanumeric), GPS, Cam (16MP, auto-focus), hot swappable, 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), 4G (LTE), NFC, Micro SD-Slot, resolution: 480x800 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (10), protection class: IP65, incl.: battery, 6700 mAh, hand-strap, order separately: charging cradle, power supply unit, power cable
  • M3 S20X4C-Q2CWEE-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    S20X4C-Q2CWEE-HF

    portable data collection device, 2D, imager (SE4770), keypad (51 keys, alphanumeric), GPS, Cam (16MP, auto-focus), hot swappable, 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), 4G (LTE), NFC, Micro SD-Slot, resolution: 480x800 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (10), protection class: IP65, incl.: battery, 6700 mAh, hand-strap, order separately: charging cradle, power supply unit, power cable
  • M3 S20X4C-Q9CWSE-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    S20X4C-Q9CWSE-HF

    portable data collection device, 2D, imager (SE4770), keypad (42 keys, Functional Numeric), GPS, Cam (16MP, auto-focus), hot swappable, 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), 4G (LTE), NFC, Micro SD-Slot, resolution: 480x800 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (10), protection class: IP65, incl.: battery, 6700 mAh, hand-strap, order separately: charging cradle, power supply unit, power cable
  • M3 S20X4C-Q2CWSE-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    S20X4C-Q2CWSE-HF

    portable data collection device, 2D, imager (SE4770), keypad (42 keys, Functional Numeric), GPS, Cam (16MP, auto-focus), hot swappable, 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), 4G (LTE), NFC, Micro SD-Slot, resolution: 480x800 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (10), protection class: IP65, incl.: battery, 6700 mAh, hand-strap, order separately: charging cradle, power supply unit, power cable
  • M3 S20X4C-QLCWRE-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    S20X4C-QLCWRE-HF

    portable data collection device, 2D, imager (long range, SE4850), keypad (30 keys, numeric), GPS, Cam (16MP, auto-focus), 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), 4G (LTE), NFC, Micro SD-Slot, resolution: 480x800 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (10), protection class: IP65, incl.: battery, 6700 mAh, hand-strap
  • M3 S20W0C-Q2CWRE-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    S20W0C-Q2CWRE-HF

    portable data collection device, 2D, imager (SE4770), keypad (30 keys, numeric), Cam (16MP, auto-focus), 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), NFC, Micro SD-Slot, resolution: 480x800 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (10), protection class: IP65, incl.: battery, 6700 mAh, hand-strap, order separately: charging cradle, power supply unit, power cable
  • M3 S20W0C-QLCWSE-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    S20W0C-QLCWSE-HF

    portable data collection device, 2D, imager (long range, SE4850), keypad (42 keys, Functional Numeric), Cam (16MP, auto-focus), 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), NFC, Micro SD-Slot, resolution: 480x800 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (10), protection class: IP65, incl.: battery, 6700 mAh, hand-strap, order separately: charging cradle, power supply unit, power cable
  • M3 S20W0C-QLCWEE-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    S20W0C-QLCWEE-HF

    portable data collection device, 2D, imager (long range, SE4850), keypad (51 keys, alphanumeric), Cam (16MP, auto-focus), 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), NFC, Micro SD-Slot, resolution: 480x800 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (10), protection class: IP65, incl.: battery, 6700 mAh, hand-strap, order separately: charging cradle, power supply unit, power cable
  • M3 S20W0C-Q9CWEE-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    S20W0C-Q9CWEE-HF

    portable data collection device, 2D, imager (45° angle, SE4770), keypad (51 keys, alphanumeric), Cam (16MP, auto-focus), 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), NFC, Micro SD-Slot, resolution: 480x800 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (10), protection class: IP65, incl.: battery, 6700 mAh, hand-strap, order separately: charging cradle, power supply unit, power cable
  • M3 S20W0C-Q9CWSE-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    S20W0C-Q9CWSE-HF

    portable data collection device, 2D, imager (45° angle, SE4770), keypad (42 keys, Functional Numeric), Cam (16MP, auto-focus), 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), NFC, Micro SD-Slot, resolution: 480x800 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (10), protection class: IP65, incl.: battery, 6700 mAh, hand-strap, order separately: charging cradle, power supply unit, power cable
  • M3 S20W0C-Q9CWRE-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    S20W0C-Q9CWRE-HF

    portable data collection device, 2D, imager (45° angle, SE4770), keypad (30 keys, numeric), Cam (16MP, auto-focus), 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), NFC, Micro SD-Slot, resolution: 480x800 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (10), protection class: IP65, incl.: battery, 6700 mAh, hand-strap, order separately: charging cradle, power supply unit, power cable
  • M3 S20W0C-Q2CWSE-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    S20W0C-Q2CWSE-HF

    portable data collection device, 2D, imager (SE4770), keypad (42 keys, Functional Numeric), Cam (16MP, auto-focus), 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), NFC, Micro SD-Slot, resolution: 480x800 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (10), protection class: IP65, incl.: battery, 6700 mAh, hand-strap, order separately: charging cradle, power supply unit, power cable
  • M3 S20W0C-QLCWRE-HF - Barcode Industrial Terminal, Mobile Terminal, Handheld Terminal

    S20W0C-QLCWRE-HF

    portable data collection device, 2D, imager (long range, SE4850), keypad (30 keys, numeric), Cam (16MP, auto-focus), 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), NFC, Micro SD-Slot, resolution: 480x800 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (10), protection class: IP65, incl.: battery, 6700 mAh
  • M3 S20X4C-QFCWEE-HF - M3 Mobile US20X, 2D, BT, Wi-Fi, 4G, NFC, alpha, GPS, hot-swap, ext. bat., Android

    S20X4C-QFCWEE-HF

    portable data collection device, 2D, imager (SE5500), keypad (51 keys, alphanumeric), GPS, Camera (16MP, auto-focus), hot swappable, 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), 4G (LTE), NFC, Micro SD-Slot, resolution: 480x800 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (10), protection class: IP65, incl.: battery, extended, 6700 mAh, hand-strap, order separately: charging cradle, power supply unit, power cable
  • M3 S20X4C-QFCWSE-HF - M3 Mobile US20X, 2D, BT, Wi-Fi, 4G, NFC, Func. Num., GPS, hot-swap, ext. bat., Android

    S20X4C-QFCWSE-HF

    portable data collection device, 2D, imager (SE5500), keypad (42 keys, Functional Numeric), GPS, Camera (16MP, auto-focus), hot swappable, 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), 4G (LTE), NFC, Micro SD-Slot, resolution: 480x800 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (10), protection class: IP65, incl.: battery, extended, 6700 mAh, hand-strap, order separately: charging cradle, power supply unit, power cable
  • M3 S20X4C-QFCWRE-HF - M3 Mobile US20X, 2D, BT, Wi-Fi, 4G, NFC, num., GPS, hot-swap, ext. bat., Android

    S20X4C-QFCWRE-HF

    portable data collection device, 2D, imager (SE5500), keypad (30 keys, numeric), GPS, Camera (16MP, auto-focus), hot swappable, 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), 4G (LTE), NFC, Micro SD-Slot, resolution: 480x800 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (10), protection class: IP65, incl.: battery, extended, 6700 mAh, hand-strap, order separately: charging cradle, power supply unit, power cable
  • M3 S20X4C-QBCWSE-HF - M3 Mobile US20X, 2D, SE4710, BT, Wi-Fi, 4G, NFC, Func. Num., GPS, hot-swap, Android

    S20X4C-QBCWSE-HF

    portable data collection device, 2D, imager (SE4710), keypad (42 keys, Functional Numeric), GPS, Camera (16MP, auto-focus), hot swappable, 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), 4G (LTE), NFC, Micro SD-Slot, resolution: 480x800 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (10), protection class: IP65, incl.: battery, 6700 mAh, hand-strap, order separately: charging cradle, power supply unit, power cable
  • M3 S20W0C-Q2CWEE-HF - M3 Mobile US20W, 2D, SE4770, BT, Wi-Fi, NFC, alpha, Android

    S20W0C-Q2CWEE-HF

    portable data collection device, 2D, imager (SE4770), keypad (51 keys, alphanumeric), Cam (16MP, auto-focus), 10.5 cm (4''), Bluetooth, Wi-Fi (802.11ac), NFC, Micro SD-Slot, resolution: 480x800 pixels, Qualcomm Octa Core, 2.2GHz, RAM: 4 GB, Flash: 64 GB, Android (10), protection class: IP65, incl.: battery, 2600mAh, hand-strap, order separately: charging cradle, power supply unit, power cable
