MATRIX 220

Category

Barcode scanner MATRIX 220

The Datalogic Matrix 220 is a compact 2D Code scanner suitable for applications such as electronics, automotive, packaging and document capture.

The imager delivers high performance and is capable of working in harsh environments. The Datalogic Matrix 220 is equipped with a 1.2 megapixel sensor, enabling it to scan bar codes with a resolution of 2 mils - the imager will read even the smallest bar codes, which proves its accuracy.

The scanner features Power over Ethernet (POE) as well as PROFINET-IO, ETHERNET/IP and IP-NET options. These technologies make it easier to use the imager in conjunction with the overall system.

The Matrix 220 can function properly in temperatures from -10 to 50 degrees Celsius. In addition, it meets IP65 and IP67 standards and is sulfur dioxide resistant.

Back to product list

Available variants, options

Select a specific device variant to see its configuration and details.

937900012

Matrix 220, 1.2 MP Sensor, Blue Multi-Light DPM, 12mm electronic focus control, 1D+2D, Standard 10-30 VDC, Standard

View details →

937900005

Matrix 220, 1,2 MP Sensor, Red Multi-Light DPM, 12mm electronic focus control, 1D+2D, Standard 10-30 VDC, Standard

View details →

937900004

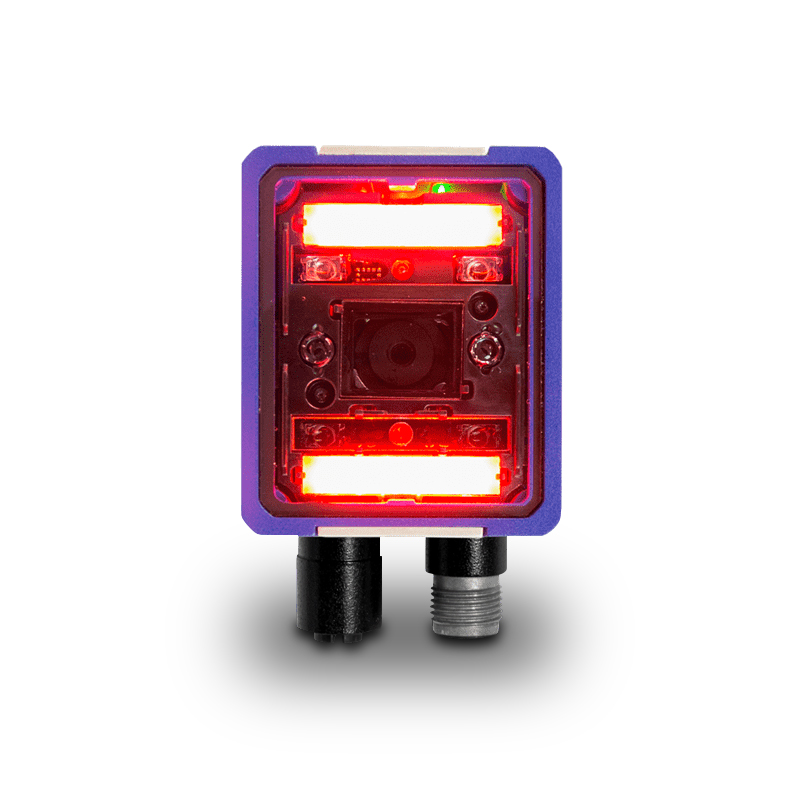

Matrix 220, 1,2 MP Sensor, DPM (RED Light), 7mm electronic focus control, Standard 10-30 VDC, 1D+2D, Standard

View details →

937900000

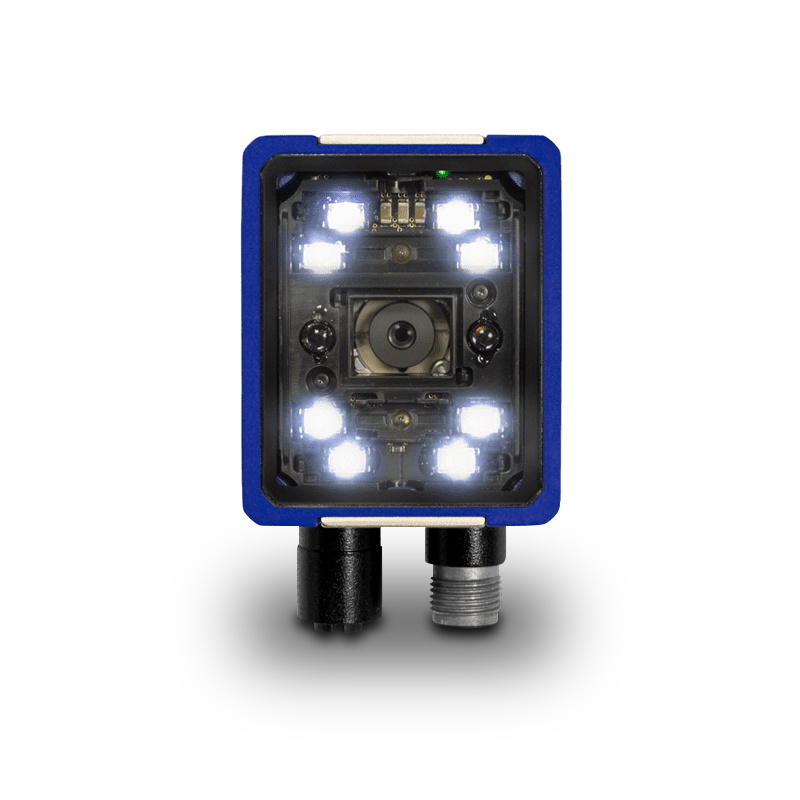

Matrix 220, 1,2 MP Sensor, White Standard, 7mm electronic focus control, 1D+2D, Standard 10-30 VDC, Standard

View details →
